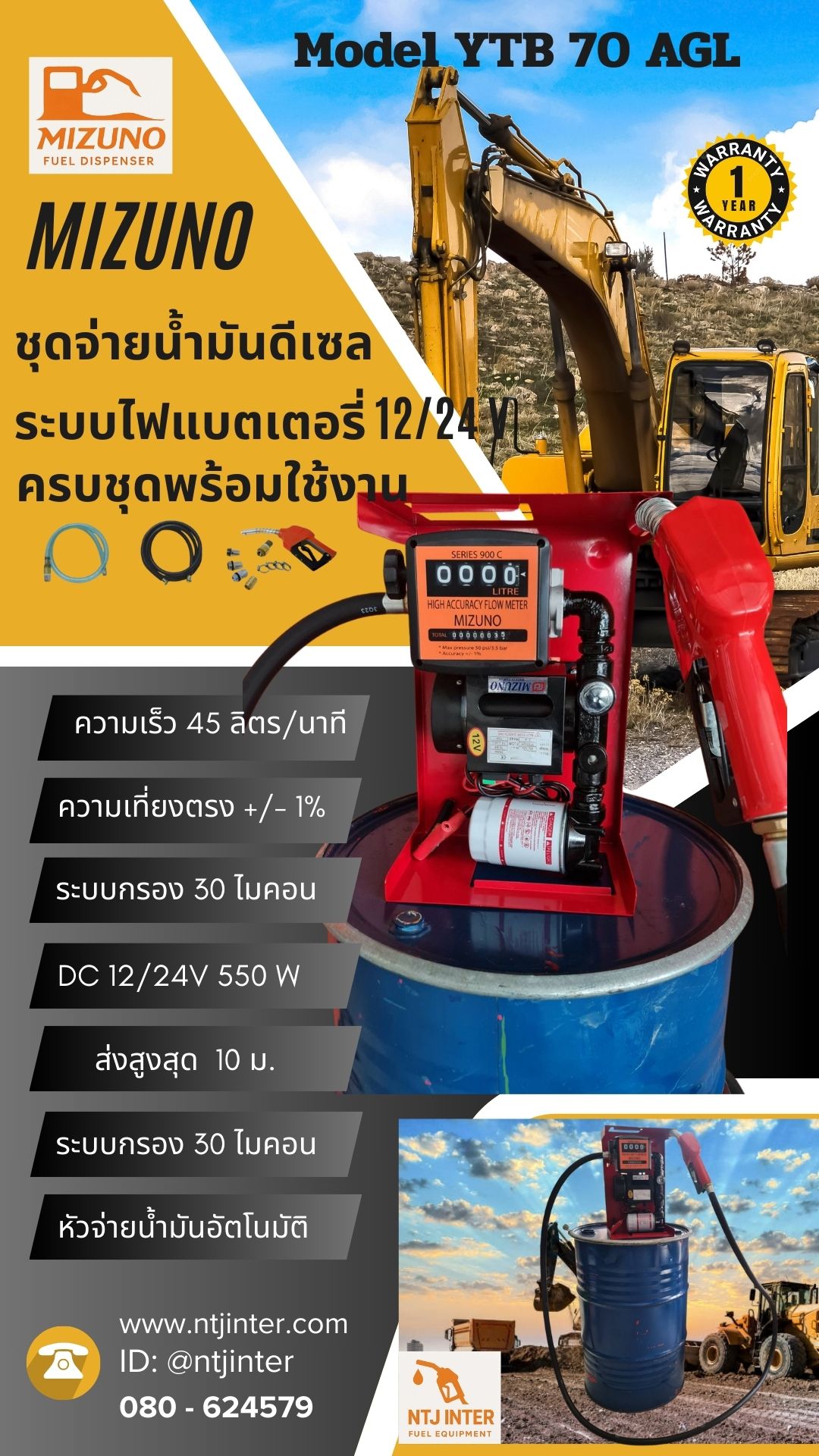

ชุดจ่ายน้ำมันดีเซล Mizuno รุ่น YTB-70AGL 12/24V

Product Application

It is easy to connect to the  1", quick coupling of the drum or tank, with or without flow meter, standard equipment:self-priming pump, meter, 1"quick coupling,4m delivery hose, manual nozzle, intake pipe. Automatic nozzle and other accessories are a vailable on request. flow meter can be matched with  liter according to customers's request.

DC Fuel Transfe Pump

Displacement, self-priming, rotary electric vane pumps for the transfer of diesel fuel equipped with by-pass valve. Powerful, dependable and economical, they are available with 12 and 24-volt direct current motors.

Technical specifications

•Cast iron pump body finished with anti-corrosion paint.

•Vane pump with sintered steel rotor and acetal resin vanes.

•By-pass valve incorporated in the pump body.

•Direct current brush motor with permanent magnet stator:

•Motor protection grade IP55.

•Used in intermittent service with 30-minute work cycles.

•DIESEL PUMP SET PACKING

•WITH ALUMINIUM DIESEL METER

•WITH 4 METERS RUBBER HOSE

•WITH AUTOMATIC GUN

•40-45 L/MIN

•DUTY CYCLE: 30MIN

•2800RPM
