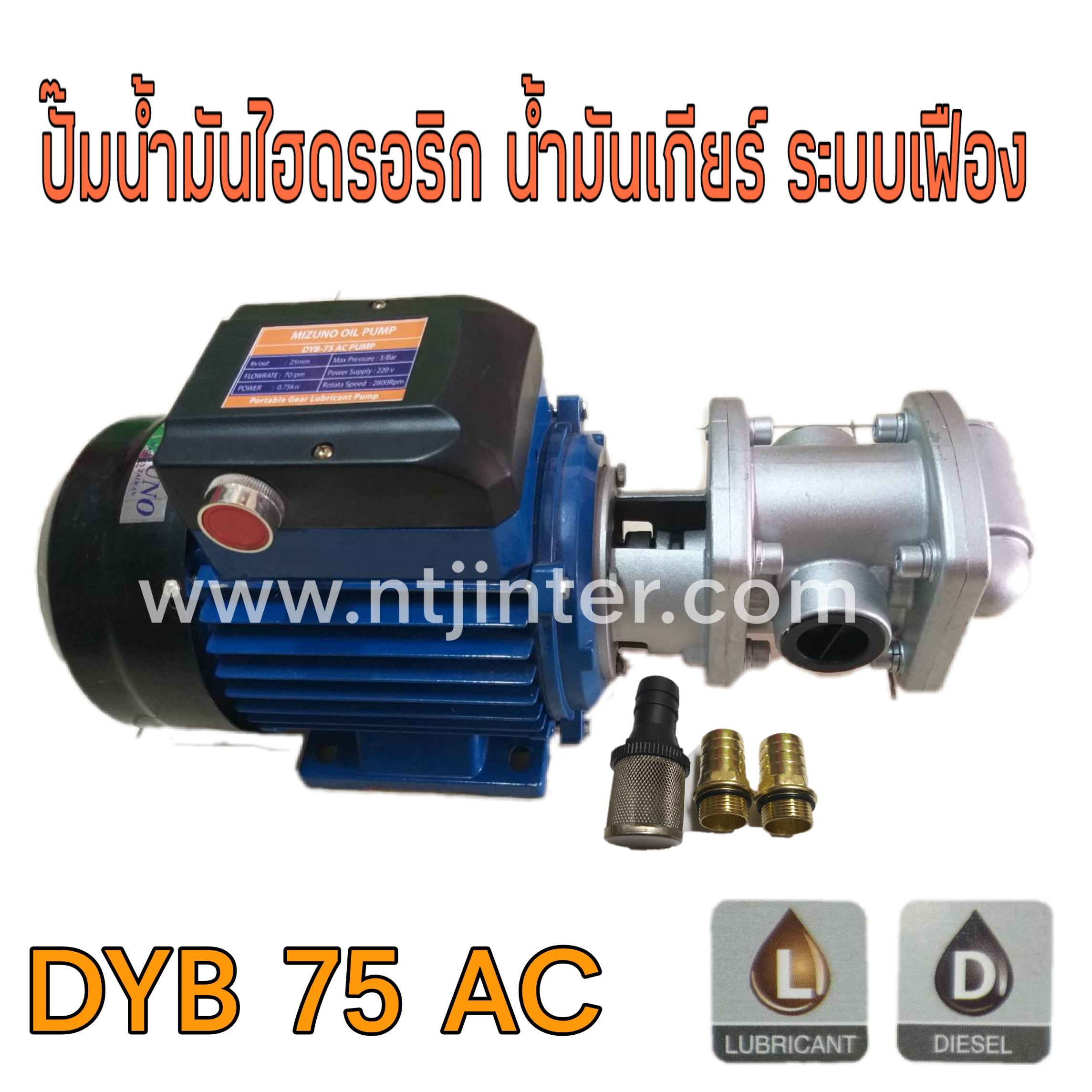

ปั๊มน้ำมันไฮดรอริก ระบบเฟือง DYB 75 AC

Gear Oil Pump
It can transfer pure and neutral oil (Eg: diesel oil ,kerosene ,engine oil and verious plant oils)
Powerful suction and self-priming
With brass gear, It can transfer low-flash point liquid such as gasoline benzene etc.
Max liquid temperature up to 180 °C
Induction motor with aluminum housing , IP44
Bypass valve built in.
Continuous duty cycle

Power Supply  : AC 220V +/-10% 50/60Hz
In/Out Dia  :  25 mm.
Max pressure  :  3 Bar
Motor Power  :  0.75 Kw
Rotate Speed  : 2800 RPM
