ชุดจ่ายน้ำมันไฮดรอริค น้ำมันเครื่อง ดิจิตอล

• Technical Specifications

Portable Gear Lubricant Pump With Digital Flow meter
Power : 220v +/-10% 50/60 Hz 0.75Kw
Rotate Speed : 2800 RPM
Max Pressure : 2 Bar
IN /OUT Dia : 25 mm
Max Flow : 40 LPM
Built-in Strainer & Bypass
Mererial : Cast Iron
Meter Accuracy +/- 0.5%

K33 Gear Meter Gear Pump Assembly 80LPM



1.Product Description

• Introduction

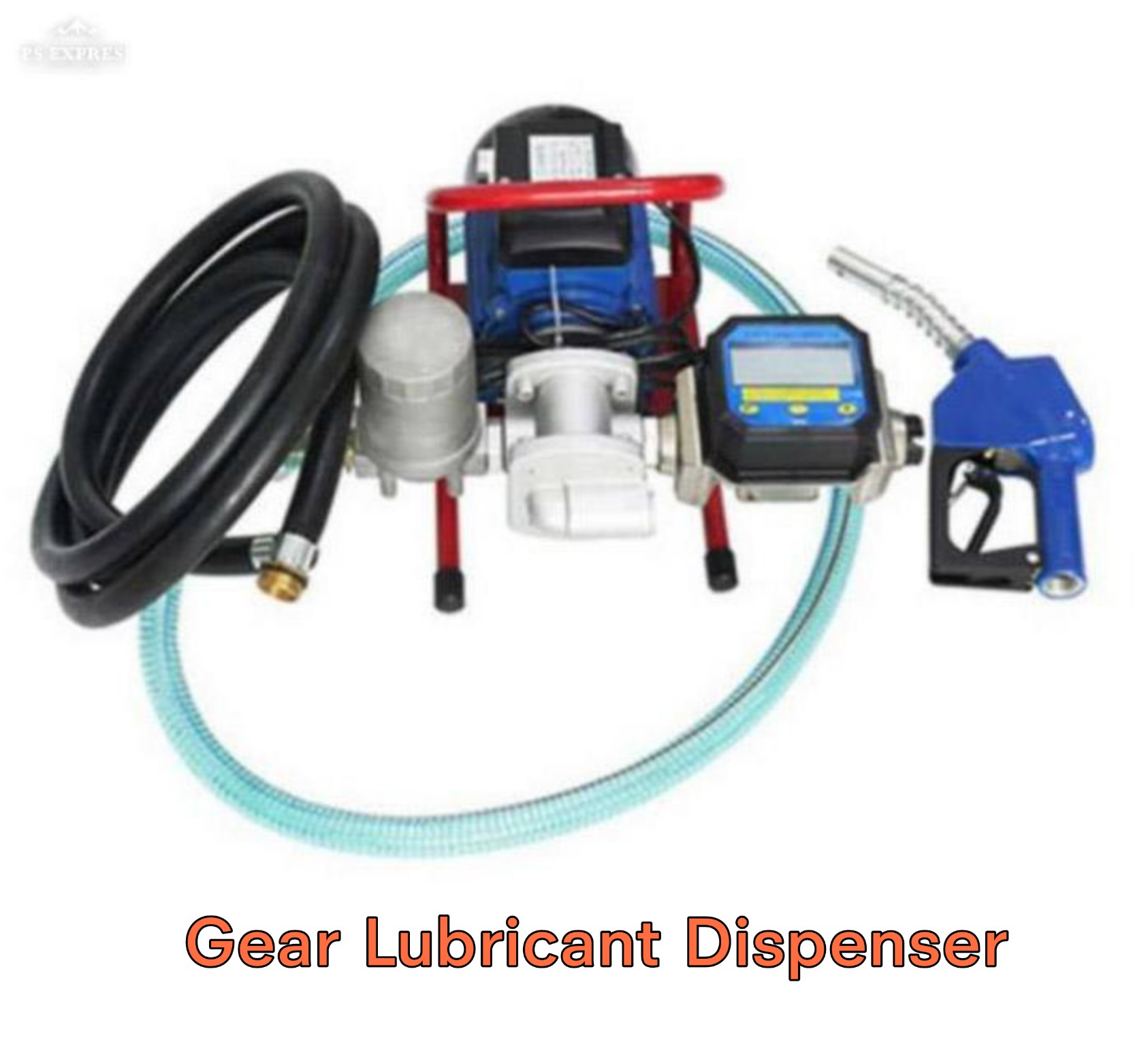

DYB-80-AC ogm diesel pump assy . It is generally combined with 4M rubber delivery hose;2M plastic suction hose;11A auto nozzle; K33 oval gear flowmeter;DYB-80-AC gear pump;Filter; Bracket. Easy installation, can quickly connected to fuel or oil drum, low operating cost, small size, the pump can select high precision oval gear flowmeter and motors. After all, it is quite a practical choice for diesel/kerosene transfering.



• Features

a.  cast irom pump body finished with anti-corrosion pain

b.  easy carrying and wide application in various excvavtors, land levellers, pavers, road rollers, etc.

c.  flexible option for the pumps and meters, as well as the bracket

d.  for diesel/kerosene transfer

•
